In June 2025, as India inaugurated the Chenab Railway Bridge, the nation witnessed a new milestone in engineering. Perched a staggering 359 meters above the Chenab River (higher than the Eiffel Tower), this 1.315 km steel-arch structure is now officially the world’s highest railway bridge. Beyond breaking height records, the Chenab Bridge embodies a breakthrough in how such complex projects are delivered: it was conceived and built with deep BIM integration.
For architects, engineers, and construction professionals, Chenab’s story shows how Building Information Modeling (BIM) and Bridge Information Modeling (BrIM) can tame extreme design and construction challenges.
What is the Chenab Bridge, and why is it significant?

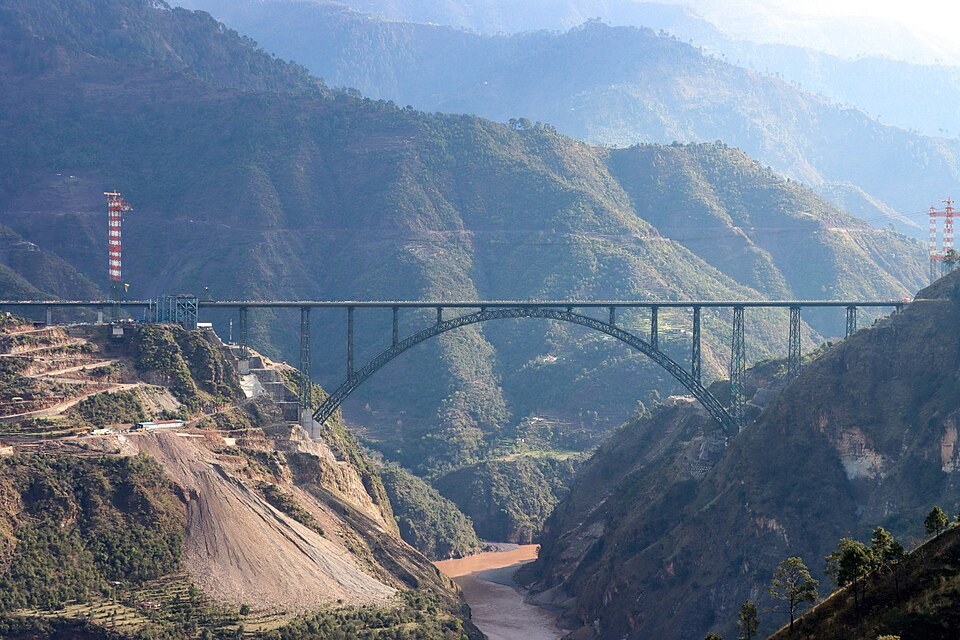

The Chenab Bridge is the world’s highest railway bridge, standing 359 meters above the Chenab River in Jammu & Kashmir, India. It’s a key part of the Udhampur–Srinagar–Baramulla Railway Link (USBRL) project, a 272-km route through the Himalayas. The bridge’s specifications are daunting: total length 1,315 m, main arch span 467 m, and the deck height 359 m above the river. The bridge represents a major engineering milestone in Indian infrastructure.
Project Challenges
Constructed almost entirely of steel (approximately 25,000 to 28,600 tonnes), it was designed to withstand extreme winds (up to 266 km/h) and earthquakes (magnitude 8). Foundations rest on Himalayan bedrock (roughly 40×50 m bases). The arch was erected via cable cranes from both sides and bolted together with ~600,000 fasteners.
These parameters made Chenab Bridge an unprecedented challenge. Its 120-year design life and ₹1,486 crore budget meant there was virtually no margin for costly rework or delays. Conventional 2D design methods and manual coordination would have been inadequate for such complexity.
From the outset, the client (Konkan Railways Corporation) mandated a digital approach: “Using 3D modeling was a prerequisite”. In short, engineers turned to BIM and BrIM to virtually construct and analyze the bridge long before a single bolt was tightened.
BIM and Bridge Information Modeling (BrIM) Explained
Building Information Modeling (BIM) is a data-rich 3D modeling methodology that goes far beyond CAD. For bridges, this is often called Bridge Information Modeling (BrIM). In BrIM, the 3D model becomes a single source of truth containing geometric, material, and performance data.
All disciplines such as structural, civil, geotechnical, and architectural work on this model, enabling automatic clash checking and design coordination. For example, In a BrIM workflow, terrain, roadway, and structural data are integrated so that changes propagate across the model, reducing errors and improving constructability.
In practice, BIM empowers teams to simulate construction (4D), forecast costs (5D), and even plan maintenance (6D) using a unified digital twin of the infrastructure.
In a few words, every component in the model “holds its own data” be it dimensions, material properties, weight, bolt sizes, center of gravity, etc. which can be used directly to generate fabrication drawings, CNC shop files, and erection plans. This integration of information is what makes modern infrastructure projects feasible.
Implementing BIM on the Chenab Bridge
Integrated 3D Modeling from Day One. From the very start, Chenab’s designers adopted BIM tools for every element. WSP Finland (in partnership with Germany’s Leonhardt Andrä & Partner) led the design, they chose Tekla Structures as the BIM platform to comply with KRC’s 3D modeling requirement. As a result, even before ground was broken, the project teams had a fully coordinated digital twin of the arch and viaducts.
All bridge components were modeled in detail. Tekla was used from the beginning of the ongoing project for everything from steel truss elements to concrete piers. This included modelling the complex shape of the 467 m arch, its 600,000 bolted joints, the twin approach viaducts, and even the terrain and railway alignment.
The contractor (Afcons Infrastructure) and third-party inspectors also worked from these BIM models. In other words, the BIM models were not just static designs but living documents used throughout design and execution.
Clash Detection and Coordination: With architecture, civil, and structural engineers all working in one model, BIM’s clash detection features became critical. The Tekla workflow included automated conflict checking between steel, concrete, and reinforcement.
WSP Finland used the software to increase efficiency and optimization with its extensive range of connections and automated clash checking, which exposes conflicts at an early stage. This meant that any geometric conflicts or interference could be resolved virtually during design, rather than on the construction site.
Adapting BIM on the Chenab Bridge helped identify and resolve conflicts in the design phase itself. This eliminated costly rework and drastically improved construction efficiency. In sum, the interoperability of the BIM platform kept all disciplines synchronized and prevented the typical delays of fixing mismatches in the field.
4D Scheduling and Simulation: Chenab’s remote, high-altitude location demanded meticulous planning for each construction step. The team used 4D BIM (3D model + time) to virtually sequence the work. Tekla models were used to plan how the steel arch would be launched and lifted by cable cranes, how the deck segments would be assembled, etc.
This digital simulation of construction sequences ensured safety and on-time progress despite the Himalaya’s narrow weather windows. For example, engineers could rehearse the arch closure operation (joining the two halves of the arch) in the model to validate crane positions, load transfers, and tolerances before doing it in reality.
Canvascom Engineering (India) highlights that “teams tackled logistics, sequencing, fabrication details, and clash detection, all before a single bolt was tightened. The result? Safer assembly, reduced rework, and unparalleled efficiency”. This underlines how Chenab’s BIM process used 4D to optimize the critical build schedule.
Data-Rich Fabrication Drawings: A key advantage of using a parametric BIM model is the ability to derive fabrication deliverables automatically. For Chenab Bridge, this meant generating steel shop drawings, CNC cutting files, and assembly instructions directly from the model.
The BIM model also produced precise quantity take-offs and weight reports. As a result, workshop teams cutting and welding the steel trusses on-site could use data from the same model the designers used, ensuring consistency. Even center-of-gravity information for each segment was captured to plan safe lifts. Overall, Chenab’s BIM-driven detailing accelerated fabrication and quality control, translating into time and cost savings.
Surveying and Reality Capture: In addition to design modeling, Chenab’s teams leveraged digital survey technologies linked with BIM. Drones and laser scanners were used to map the rugged terrain, overlay the existing environment with the 3D model, and check accuracy during construction. Drones helped identify site conditions, confirm earthwork, and even monitor assembly progress.
By feeding this data into the BIM model, engineers could detect deviations from design in real time. This use of reality capture meant that inspections were faster (inspection time cut by ~80%). In short, Chenab Bridge exemplified a fully digital workflow: from drone survey to 3D design to on-site execution, all data flowed through the BIM environment.
Tools and Technologies Used
The Chenab Bridge BIM workflow relied on industry-standard BIM and infrastructure tools:
- Tekla Structures (Trimble): The primary tool for detailed 3D modelling and steel detailing. Tekla’s parametric steel modeling handled the complex truss geometry and produced constructible models. WSP Finland leveraged Tekla’s clash detection and data-rich modeling to drive fabrication and construction.
- Civil/Geotech Software: While Tekla managed steel and concrete, typical terrain and alignment modeling was done in civil software (e.g. Autodesk Civil 3D or similar). These models were integrated into the BIM, ensuring that foundation coordinates and track alignments matched the bridge model. (Specific software is not publicly detailed, but BIM workflows typically combine Tekla with Civil 3D or MicroStation for infrastructure.)
- Project Management and BIM Coordination Tools: Software like Autodesk Navisworks or Tekla Model Sharing (Trimble Connect) was likely used to coordinate models and perform clash detection across disciplines. Navisworks, for example, can aggregate models and schedule data (4D). The Trimble case hints that “the contractor employs the models in close co-operation with the designer”, implying a common collaboration platform.
- 4D Scheduling Tools: Microsoft Project or Oracle Primavera integrated the BIM schedules to create 4D construction sequences. By linking these schedules to the Tekla model, planners could generate time-lapse simulations of bridge erection. Though not explicitly named in sources, this practice is standard in VDC.
- Surveying/Drones: UAVs and scanning equipment were used for topographic surveys and to verify as-built conditions. The drone data was used to update the terrain model and compare against the BIM. As noted, this advanced surveying cut inspection time dramatically.
- Collaboration Platforms: A centralized data environment (e.g. Trimble Connect or a BIM server) kept all model revisions tracked. Every update from design changes to material specs was recorded in one place, ensuring all stakeholders had the latest information.
Together, these tools formed a comprehensive BIM/VDC ecosystem. Tekla Structures was at its core, but it was complemented by scheduling, coordination, and surveying technologies to fully leverage BIM across design and construction.
Collaboration and Workflow Benefits
BIM’s greatest value on Chenab was in enabling multidisciplinary collaboration. By treating the 3D model as the “single source of truth,” engineers, fabricators, and contractors could align easily. Instead of the isolated 2D drawings, all parties saw the same integrated model.
Practical benefits included:
- Design Quality and Review: Third-party inspectors and designers reviewed the bridge geometry in the model, ensuring that even complex arch alignment was verified before construction. Bentley explains that such a single model allows different disciplines to update and retrieve data seamlessly, which was essential given the bridge’s challenging location and geometry.
- Reduced Errors and Rework: Early clash detection (as noted above) meant that costly mistakes were eliminated. Canvascom Engineering summarizes that Chenab’s BIM process delivered “reduced rework” and “unparalleled efficiency”. In practice, this meant fewer stoppages on site and less wastage of materials.
- Real-time Progress Monitoring: Because each element of the bridge was modeled, engineers could track installation progress directly against the digital plan. Any deviation (e.g. a misaligned bolt or tolerance issue) could be spotted in BIM and corrected immediately. The model was essentially used as an on-site check.
- Consistent Data for Fabrication: The fabrication shop working on steel components used outputs from the Tekla model, ensuring that cuts and welds matched the design precisely. This consistency gave confidence that pieces delivered to site would fit without adjustment. The high accuracy of Tekla allowed WSP Finland to execute constructions reliably.
- Asset Management: Even after construction, the BIM model serves as a digital record for future maintenance. WSP Finland’s director noted that the data in the model can later be used for asset management during the bridge’s maintenance phase. This means Chenab’s BIM is also a 6D asset model, potentially supporting inspections and repairs for decades.
The combined result of these collaborative benefits was a project delivery far smoother than would have been possible otherwise. In the harsh Himalayan terrain, for example, fewer site visits were needed and safety was improved because much of the work was verified digitally first.
Outcomes and Impact
The measurable outcomes of BIM on Chenab Bridge were significant. Using BIM saved money, time, and increased safety:
- Cost and Time Savings: Chenab’s project team credits digital BIM processes with saving tens of thousands of dollars. Surveying and modeling reduced inspection time by almost 80%, saving roughly ₹86 Lakhs on inspection costs. In addition, better planning and pre-fabrication cut down delays. While the bridge ultimately cost ₹1,486 crore, the avoidance of rework and optimized logistics would have saved substantial amounts relative to that budget.
- Safety Improvements: Replacing dangerous site walkthroughs with drone surveys and virtual reviews reduced risk to workers. Fewer manual measurements in high-wind, high-altitude conditions meant fewer accidents.
- Construction Speed: Although Chenab was a multi-year project (with the arch completed in 2021 and inauguration in 2025), BIM helped streamline the complex assembly tasks. For example, 4D planning meant that critical lifts and launches happened without delay. The rapid erection of each truss and segment was made possible by having precise lift plans derived from the BIM. The net effect was that, despite interruptions (e.g. weather, the 2008 to 2010 suspension) the final assembly phase proceeded methodically.
- High Quality: The dimensional accuracy of the finished bridge speaks to the success of the modeling. The BIM model’s precision allowed it to be used for fabrication in the temporary workshops on site. This implies that the steel pieces and concrete forms fabricated off-site fit together as intended, leading to a high-quality result. Indeed, when the bridge was opened, officials lauded it as an “architectural marvel”, a testament to the precise engineering underpinning it.
In summary, BIM delivered on its promise: safer assembly, reduced rework, and more efficient construction. The Chenab Bridge exemplifies a project where BIM was not an afterthought, but the very backbone of project delivery.
Lessons Learned
The Chenab Bridge project offers several best practices for the industry:
- Mandate BIM Early: The owner’s requirement for 3D modeling from day one proved crucial. When clients set BIM standards early, design and construction teams can plan accordingly.
- Invest in Detailed Modeling: High Levels of Development (LOD) in the model including geometry, materials, and analysis attributes unlocked real benefits (like CNC fabrication). Partial models would not suffice.
- Use BIM for On-Site Coordination: Extending BIM use to the field (via tablets or augmented reality) helps construction crews align with the design. Training crews to use the models as a guide can cut errors. In Chenab’s case, inspectors and contractors actively used the BIM files.
- Adopt a Collaborative Mindset: Digital workflows work best when all stakeholders (owners, designers, contractors) agree on common standards. Chenab’s design consultant (WSP) coordinated closely with Afcons and others through the BIM models, smoothing handoffs. Open communication and shared models are key.
Looking ahead, the convergence of BIM with emerging technologies will further revolutionize infrastructure projects. Chenab Bridge points toward a future where bridges have “digital twins” dynamic models that link to real-time data. For example, sensors on the Chenab Bridge (stress gauges, vibration sensors) could feed information back into the BIM model for ongoing health monitoring. Artificial Intelligence and generative design may in future automate optimization of bridge components. BIM models may also integrate with Geographic Information Systems (GIS) to manage entire rail networks.
Globally, agencies are increasingly requiring model-based delivery (e.g. New York DOT’s model-based contracts). In India, Chenab Bridge sets a precedent. It shows that with BIM, engineers can conquer even the toughest terrain. As BIM becomes widespread, we can expect more impossible projects to become possible.
Conclusion
The Chenab Railway Bridge is not just an architectural landmark, it is a proof-of-concept for advanced BIM in infrastructure. Its successful delivery hinged on treating the bridge as a fully digital model throughout design and construction. Every steel beam, crane lift, and scheduling sequence was planned in BIM before any real-world action. The result was a project that was safer, faster, and more precise than conventional methods would allow.
For industry professionals, Chenab Bridge offers clear takeaways: embrace BIM early, leverage detailed models for all disciplines, and use digital tools for planning and monitoring. As projects grow in scale and complexity, BIM will only become more indispensable.
Driving BIM success depends on skilled professionals. We at BIMMantra, exemplify efforts to build such capability in India. As the leading BIM training institute in Pune, we offer specialized courses in BIM, Revit Architecture, Civil 3D, and GIS. Our curriculum emphasizes real-world projects and practical training, ensuring that you can apply BIM tools effectively on-site.
In fact,we have trained over 500 professionals in BIM technologies. If you are planning to embark on complex projects, partnering with BIMMantra can accelerate workforce readiness. Our programs cover the full AEC digital workflow from 3D modeling and clash detection to 4D scheduling and data management.
The Chenab Bridge now stands as a symbol of progress: a literal bridge connecting remote regions, and a metaphorical bridge to a future where digital engineering transforms construction. By following its example of integrating BIM at every stage, future projects can turn bold visions into reality with confidence.
