You step into your office and see two glowing screens side by side: one filled with crisp 2D linework, the other alive with a fully data‑driven 3D model. Which screen holds the future of your next landmark project?
In the world of architecture and engineering, the debate between CAD’s precision drafting and BIM’s intelligent modeling is more than just academic, it shapes timelines, budgets, and design innovation.
From aligning steel beams on a super‑tall tower to running energy simulations for net‑zero buildings, understanding how and when to leverage each approach can be the difference between costly delays and breakthrough success.
Computer-Aided Design (CAD) revolutionized drafting by digitizing precision drawings, while Building Information Modeling (BIM) elevates that foundation through data-rich 3D modeling, advanced simulations, and lifecycle management. Both technologies drive efficiency, reduce errors, and enable collaboration across architecture, engineering, and construction (AEC) projects.
What Is CAD?
CAD refers to software that creates, modifies, and optimizes detailed 2D and 3D designs. Originating in the 1960s, it replaced manual drafting with precise digital drawing tools first in 2D, then extending into basic 3D capabilities. Despite these advances, CAD files remain largely geometry-centric and are managed as separate drawing files.
Key Features of CAD
- Geometry-Centric Precision: Exact control over lines, curves, and shapes for technical documentation.
- 2D and 3D Capabilities: Strong 2D drafting and parametric 3D features, though 3D intelligence is limited.
- File-Based Collaboration: Separate DWG or DXF files require manual version control and coordination, which can lead to miscommunication.
What Is BIM?
BIM is a process and set of tools for creating and managing digital representations of physical and functional characteristics of buildings throughout their entire lifecycle.
Unlike CAD, BIM embeds materials data, cost information, scheduling, and performance parameters directly into a single, intelligent model.
Key Features of BIM
- Parametric and Intelligent Modeling: Changes propagate automatically across the entire model.
- 4D, 5D, and Beyond: Integrates time scheduling (4D), cost estimation (5D), sustainability analysis (6D), facility management (7D), and risk management (8D).
- Cloud-Based Collaboration: A centralized model allows all stakeholders, architects, engineers, contractors, and owners to work on the same dataset in real time.
Key Differences Between CAD and BIM
| Aspect | BIM | CAD |
| Dimensionality | 3D core, plus 4D (time), 5D (cost), up to 8D (risk, FM) | Primarily 2D with basic 3D |
| Data Integration | Rich metadata: materials, costs and operation logs | Geometric data only: shapes and dimensions |
| Collaboration | Multi-user, real-time updates within one model | File-based, manual merging, prone to miscommunications |
| Change Management | Automatic propagation of changes across entire model | Manual updates in each drawing |
| Analysis & Simulation | Built-in clash detection, energy analysis, performance studies | Limited simulation, often requires external tools |
| Lifecycle Management | Supports design through demolition | Focused on design and drafting stages |
Real-World Case Studies

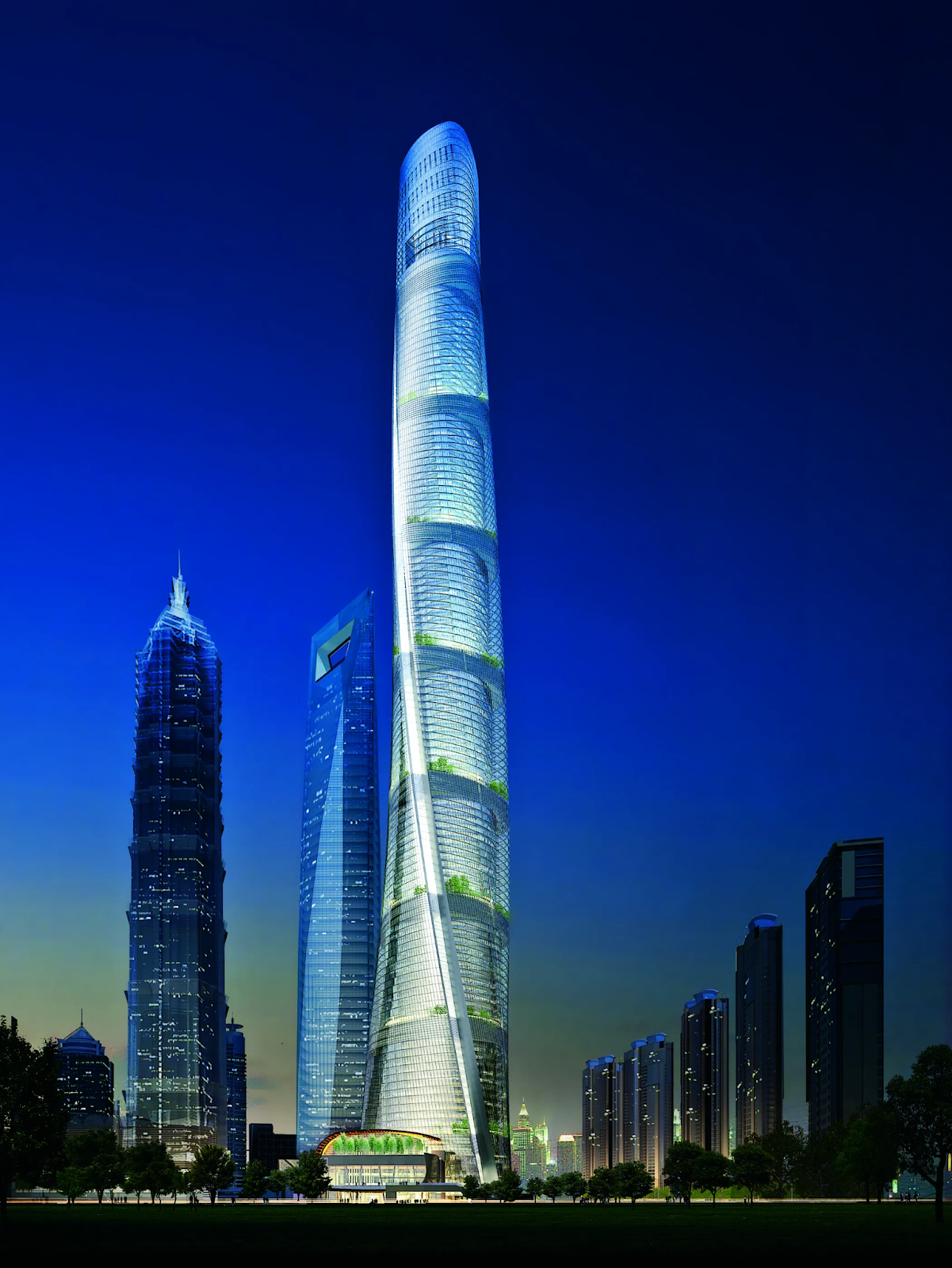

Complex Commercial Developments: Shanghai Tower
The Shanghai Tower in China, a 632 m high‑rise office tower designed by Gensler and structurally engineered by Thornton Tomasetti, leveraged BIM to coordinate architecture, structure, and MEP systems before construction began.
Using Autodesk Revit and Navisworks, the project team identified over 3,000 clashes in the model, reducing on‑site RFIs by 40% and saving approximately 10% of the construction budget through early conflict resolution.

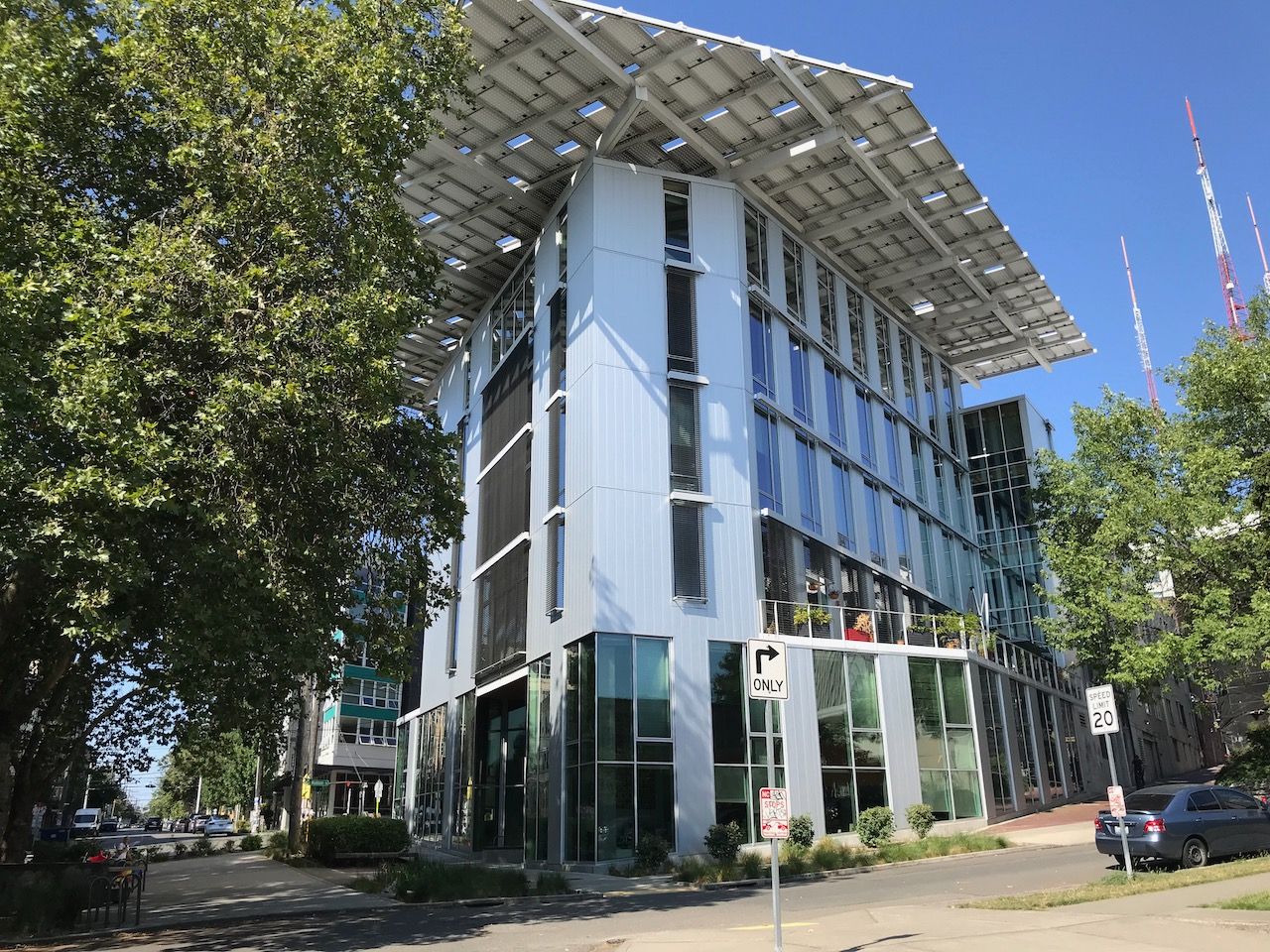

Sustainable Design Initiatives: Bullitt Center
The Bullitt Center in Seattle designed by Miller Hull Partnership with structural engineering by PAE Engineers and developed by Point 32 was dubbed “the greenest commercial building in the world” after achieving net‑zero energy performance.
BIM was pivotal for its energy modeling: architects used Autodesk Insight and Sefaira to simulate daylighting, optimize a 244 kW photovoltaic array, and reduce building energy use intensity to 12 kBTU/sq ft·yr, a fraction of the Seattle average.

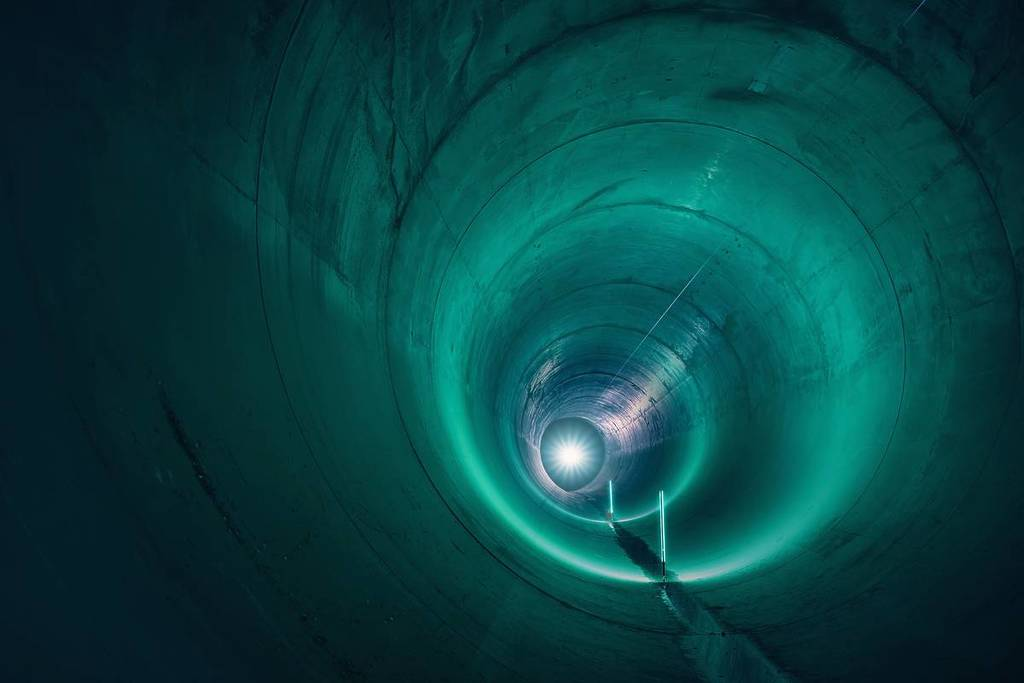

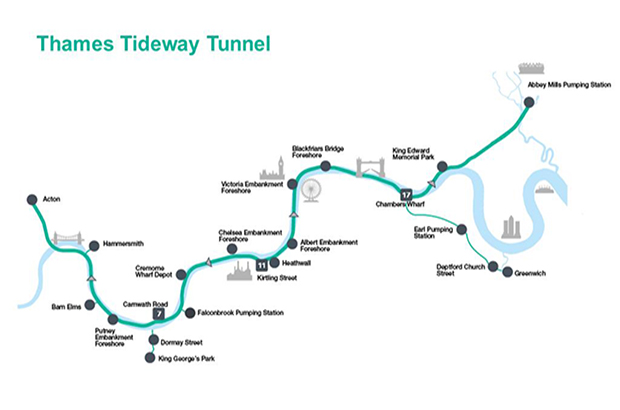

Infrastructure and Urban Planning: Thames Tideway Tunnel (Digital Twin)
In London’s Thames Tideway Tunnel project, a 25 km “super sewer” delivered by a consortium including Balfour Beatty and Costain, AECOM implemented a digital twin based on ISO 19650 standards to integrate design, construction, and operations data.
By extending the BIM model into a live digital twin, stakeholders accessed real‑time progress tracking, clash detection, and cost forecasting, improving on‑time delivery by 15% and enhancing maintenance planning for the tunnel’s 24 shafts.
Tools, Plugins, and Resources
Prominent BIM Software
- Autodesk Revit: Comprehensive BIM platform with robust parametric modeling and cloud collaboration.
- Graphisoft ArchiCAD: User‑friendly interface with strong multi‑discipline support.
- Navisworks Manage: Model aggregation and clash detection for large, complex projects.
Essential CAD Software
- AutoCAD: Industry standard for 2D drafting and basic 3D modeling; extensive plugin ecosystem.
- SketchUp: Intuitive 3D modeling for quick concept visualization, often paired with CAD workflows.
Valuable Plugins and Integrations
- Dynamo for Revit: Visual programming to automate repetitive BIM tasks.
- BIMcollab Zoom: Cloud‑based issue management that integrates with major BIM tools.
- BIM 360 Docs: Document management and version control for both CAD and BIM deliverables.
Challenges and Best Practices
Common Challenges
- Adoption Curve: Transitioning from CAD to BIM requires training and culture change.
- Data Management: Large BIM models demand robust IT infrastructure and governance.
- Interoperability: Maintaining smooth data exchange among different software platforms (e.g., IFC, DWG).
Best Practices
- Structured BIM Execution Plan (BEP): Define roles, responsibilities, and data standards at the project outset.
- Ongoing Training: Invest in workshops and certifications to keep teams proficient.
- Incremental Implementation: Pilot BIM on smaller projects to demonstrate value before full-scale rollout.
Conclusion
CAD continues to serve as the backbone for precise technical drawings and smaller‑scale projects, while BIM delivers transformative benefits in complex, data‑driven, multi‑stakeholder environments. Looking forward, emerging technologies like AI‑driven generative design, digital twins, and cloud‑native collaboration will increasingly blend CAD precision with BIM intelligence.
